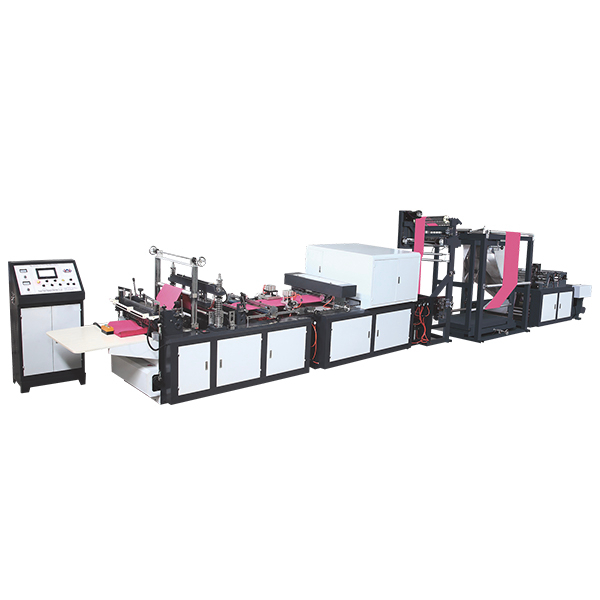

HBL-C700
8449009000
Samples：
Box bag
D-cut bag
Shoes bag
T-shirt bag U&W
Type | HBL-C700 | HBL-C800 |
Bag Making Speed | 20-160pcs /min | 20-160pcs /min |
Bag Width | 100-800mm | 100-800mm |
Bag Length | 200-600mm | 200-700mm |
Bag-Making Thickness | 30-120g | 30-120g |
Power Supply | 220V | 220V |
Total Power | 12-18KW | 12-18KW |
Overall Dimension （L*W*H） | 9.6m*2m*2.1m | 9.6m*2.2m*2.3m |
Weight | 2800kg | 2900kg |
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic D-cut punching
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
Product Introduction:
This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as box bag, flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.
Company:
1. Q: How many type of bags HBL-C700 can do?
A: non-woven D cutting bags, box bag ,soft loop bags,
string through bags, T-shirt bags( refer to above pictures pls).
2. Q:Bag width? ------------------------100-800mm
Bag Height? ------------------------200-580mm
3. Q:Engineer can come and teach buyer how to operate machine?
A:Yes!Egineer is available to go and he can speak English.The fee of visiting should be bear by buyer's side.
