Samples：
Type | HBL-D | Total Weight | 11 ton |
Material Thickness | 55-130g | Feeding Width | 550-1160mm |
Output | ＞70pcs/min | Handle Length | 320-620mm |
Bag Height | 200-450mm | Feeding Roll | Diameter 1.3meter |
Bag Width | 180-540mm | Multifunctional | NO.only for onetime box bag |
Bag Side | 80-200mm | 3D Bag | yes |
Air Pressure Request | 1.2m³/min 1.0MPA | Total Power | 28KW |
Power Rooquest | 380V,50Hz，3phase | Overall Size | 9.1*5.8*2.5m |
Suitable material: nonwoven;lamination nonwoven; pp woven; pp | |||
Features:

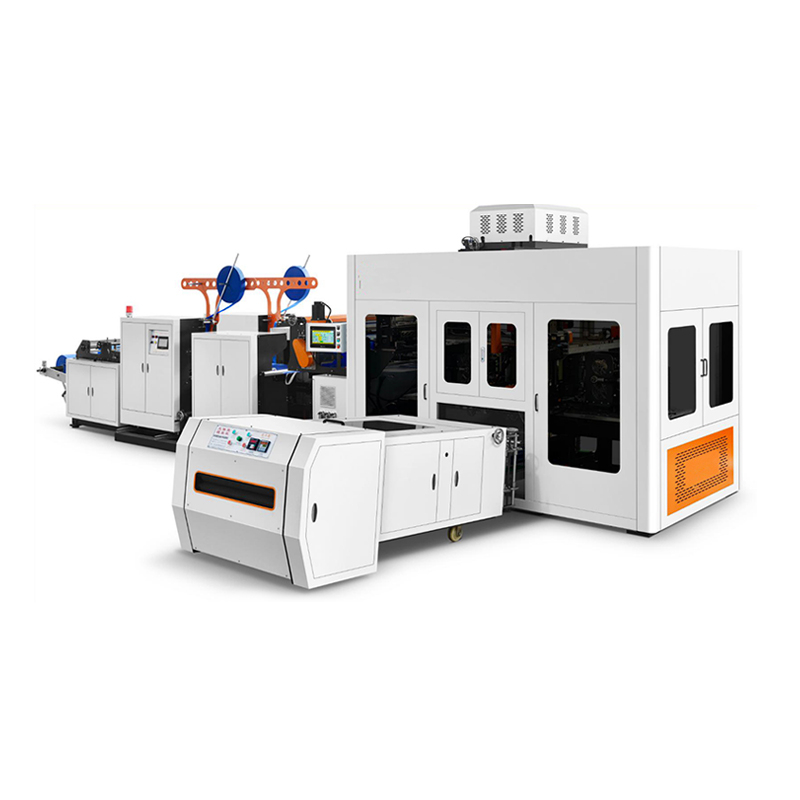

This machine can professionally produce non woven box bag，It can form the laminated / non-laminated bags in one process. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing ,once full completed, fast speed, easy to operate, firm sealing, beautiful and decent. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.
