Samples：
T-shirt bag U&W
Introduction:

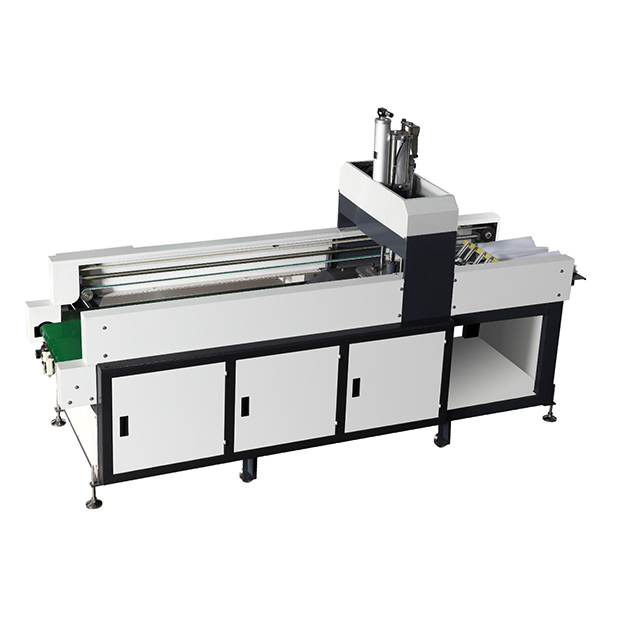

This machine is suitable for producing Non Woven， HDPE and LDPE plastic . It adopts the motor discharge the in high speed and photocell to track the cutting, punch the "U" shape and "W" shape bag in one time. And with such features, such as easy operation, high efficiency and high finished products.
Machine can be programmes punching time to reach the best effect of best bag making.and it is very easy to change the cutting knife mould if making different size of nonwoven t shirt bag.
Model | 700 |
Max.T-shirt Bag Width | 650mm |
Max.T-shirt Bag Length | 600mm |
Speed | 20-100pcs/min |
Power | 0.75kw |
Booster cylinder Pressure | 5T |
Main Motor | 0.75kw |
Pressure Cylinder | 3T |
Speed Reducer | 0.09kw |
Overall Dimension（L*W*H） | 2.6m*1.15m*1.75m |
Weight | 500kg |
