| Quantity: | |
|---|---|
Samples：
Type | 800mm |
Production Speed | 20-140pcs /min |
Cutting Width | 100-800mm |
Cutting Length | 30-800mm |
Bag-Making Thickness | 18-100g |
Power Supply | 220V |
Total Power | 4KW |
Overall Dimension （L*W*H） | 3m*1.5m*1.2m |
Weight | 850kg |
Product Introduction

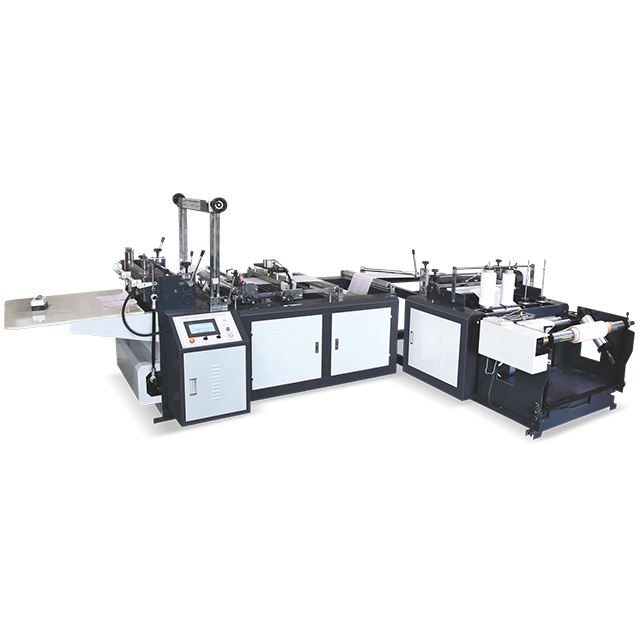

This machine is specialized in producing non woven headrest cover,which is widely used in the seats of
airliner,train and bus.The process of machine fully automatic,one worker can run the machine easily.
Features:
1. This machine adopts stepping motor control intercept fixed length. With photo-electricity tracking fixed system.Adopts ultrasonic to heat sealing string.
2. Feeding system adopts automatic photoelectric correction device. This machine is equipped with ultrasonic to fold the sides of fabric and heat sealing, it has cutting function.Easy operation, high precision, mechanical stability, low noise advantages.
3. Motor frequency control, automatic counting, alarming stop, tension control function etc.
4.Adopts heavy quality knife to cut, cutting sheet smoothly.
Samples：
Type | 800mm |
Production Speed | 20-140pcs /min |
Cutting Width | 100-800mm |
Cutting Length | 30-800mm |
Bag-Making Thickness | 18-100g |
Power Supply | 220V |
Total Power | 4KW |
Overall Dimension （L*W*H） | 3m*1.5m*1.2m |
Weight | 850kg |
Product Introduction
This machine is specialized in producing non woven headrest cover,which is widely used in the seats of
airliner,train and bus.The process of machine fully automatic,one worker can run the machine easily.
Features:
1. This machine adopts stepping motor control intercept fixed length. With photo-electricity tracking fixed system.Adopts ultrasonic to heat sealing string.
2. Feeding system adopts automatic photoelectric correction device. This machine is equipped with ultrasonic to fold the sides of fabric and heat sealing, it has cutting function.Easy operation, high precision, mechanical stability, low noise advantages.
3. Motor frequency control, automatic counting, alarming stop, tension control function etc.
4.Adopts heavy quality knife to cut, cutting sheet smoothly.
